AI 6D Short Pattern Single Plate Wafer Check Valve

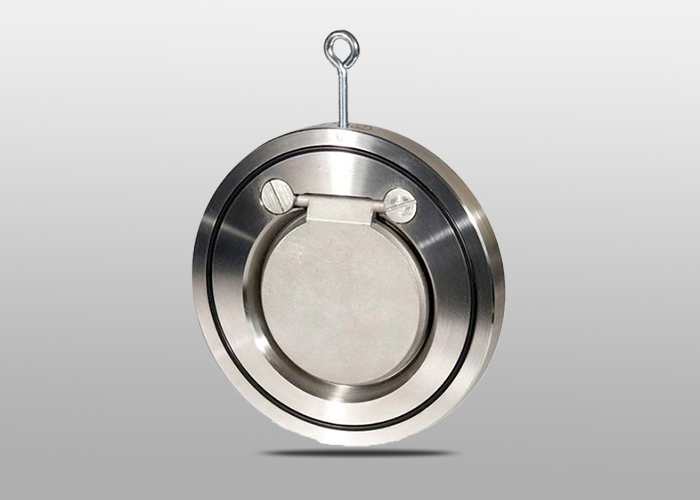

Valve Image

Description

Size : Compliance to
Design : API 6D / AΡΙ 594
Pressure Temperature Rating : ASME B 16.34
Face to Face / End to End : API 6D
End Connection Dimensions : Wafer to suit PN 20 (ASME 150 Class), PN 50 (ASME 300 Class), PN 100 (ASME 600 Class)
Inspection & Testing : ΑΡΙ 598

*Special Material & Higher Size/Class Valves also available on request.

ISO PN 20/ ASME 150 CLASS

	50	65	80	100	150	200	250	300	350	400	450	500
A	30	38	52	72	114	157	195	230	270	310	360	406
B	19	19	19	19	19	29	29	38	44	51	60	64
C	104.5	120	133	171	219	276	337	406	446	508	542	598
